LC 17/250-400/42 flexC SC SNC4

LED Driver LED T LC 017W 250–400mA/42V flexC SC – DIP Switch SNC4, SELV

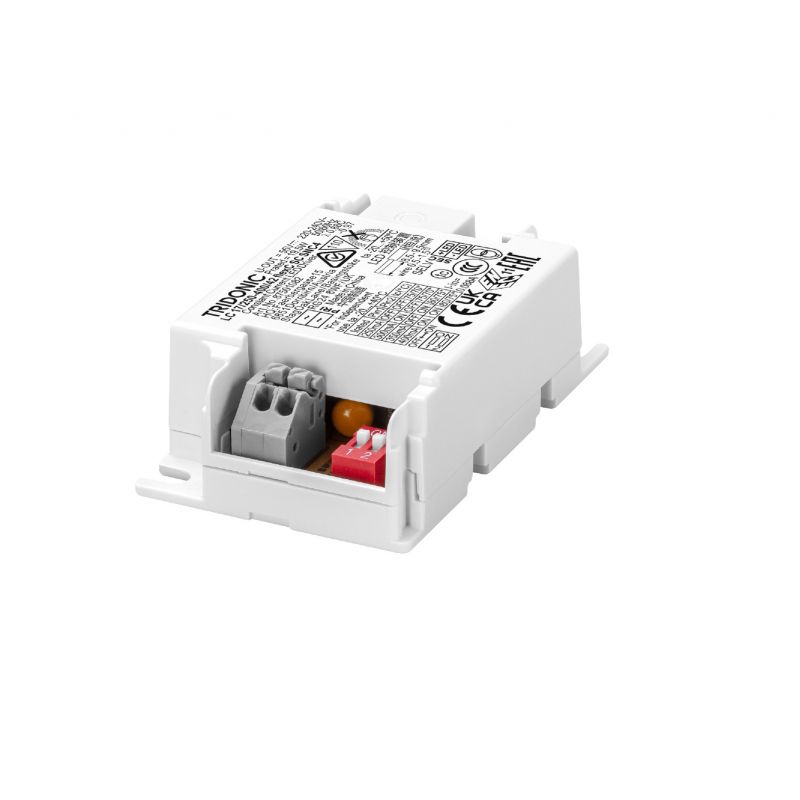

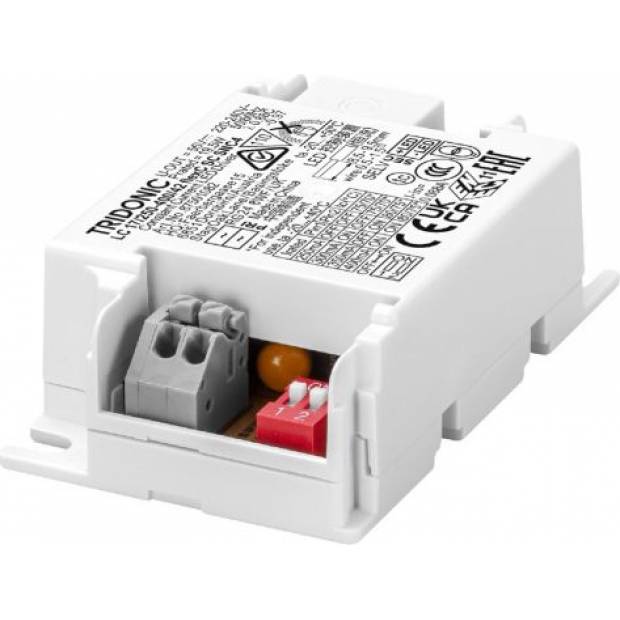

The LED T LC 017W 250–400mA/42V flexC SC is a constant current LED driver designed for powering LED modules in indoor luminaires. The output current can be adjusted using a DIP switch (SNC4) within the range of 250–400 mA.

The driver operates within an output voltage range of 24–42 V DC and features a compact housing suitable for built-in installation inside luminaires. The unit complies with SELV (Safety Extra Low Voltage) requirements.

Technical Data

• Code: 87501082
• Type: LED T LC 017W 250–400mA/42V flexC SC
• Current setting: DIP Switch (SNC4)
• Output current: 250–400 mA (adjustable)
• Output voltage: 24–42 V DC
• Maximum power: 17 W
• Safety classification: SELV

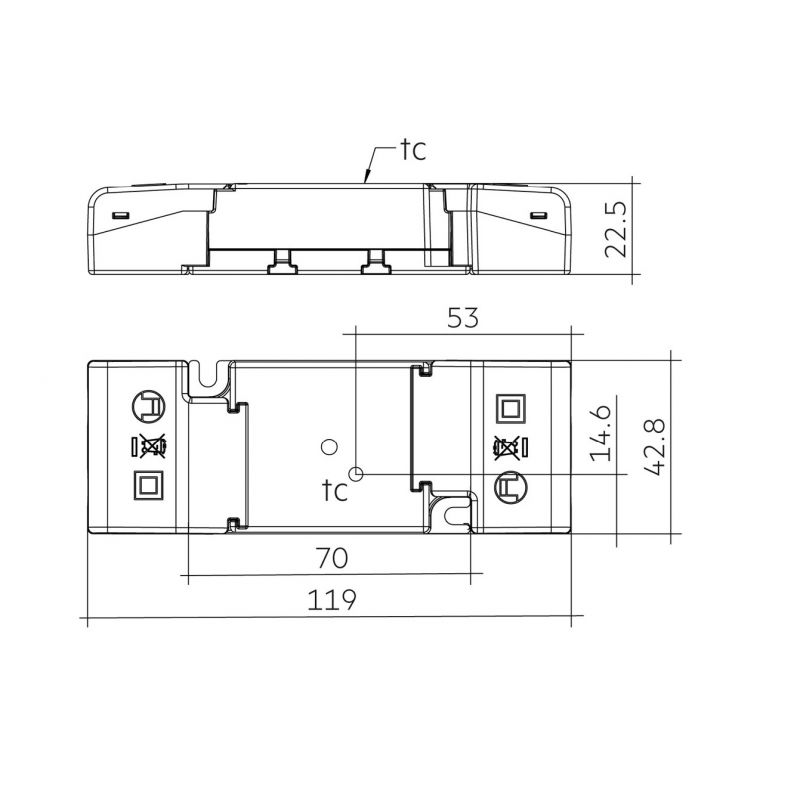

• Dimensions: 70 × 43 × 22.5 mm
• Application: Power supply for LED modules

Features

• Constant current output for stable LED operation
• Adjustable output current via DIP switch
• Compact design for luminaire integration
• SELV compliant
• Suitable for indoor LED lighting applications

Applications

• Built-in LED luminaires
• Commercial lighting
• Technical lighting installations
• Linear LED modules
• Downlights and surface-mounted luminaires
