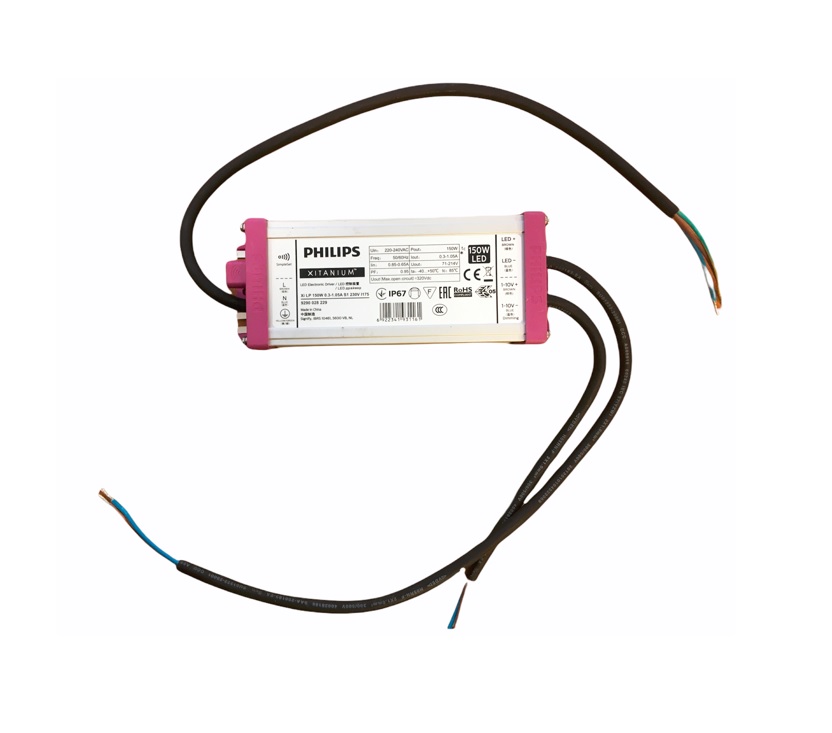

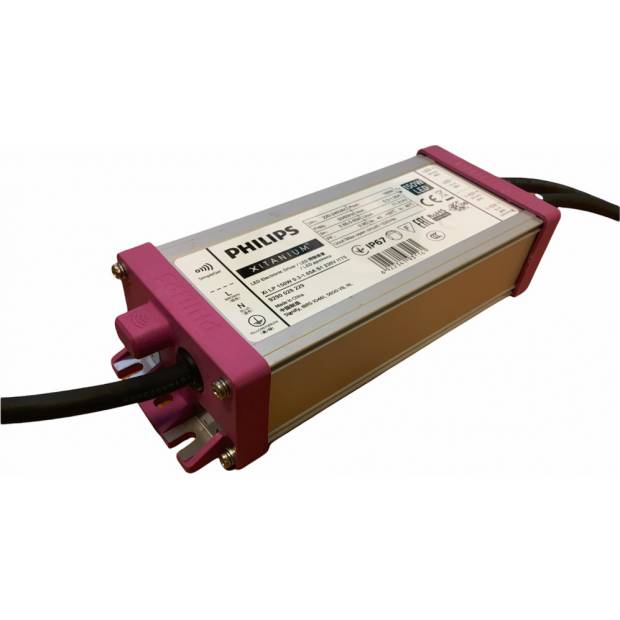

Xi LP 150W 0.3-1.05A S1 230V I175 IP67 9290 028 229 SimpleSet
Detailed product description
Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades.
Features
• SimpleSet®, wireless configuration interface
• High surge protection
• Long lifetime and robust protection against moisture, vibration and temperature
•Configurable operating windows(AOC)
• External control interface (1-10V) available
•Digital Configuration Interface (DCI) via MultiOne Interface
•Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer
• Programmable Constant Light Output (CLO)
• Integrated Driver Temperature protection
Downloadable files

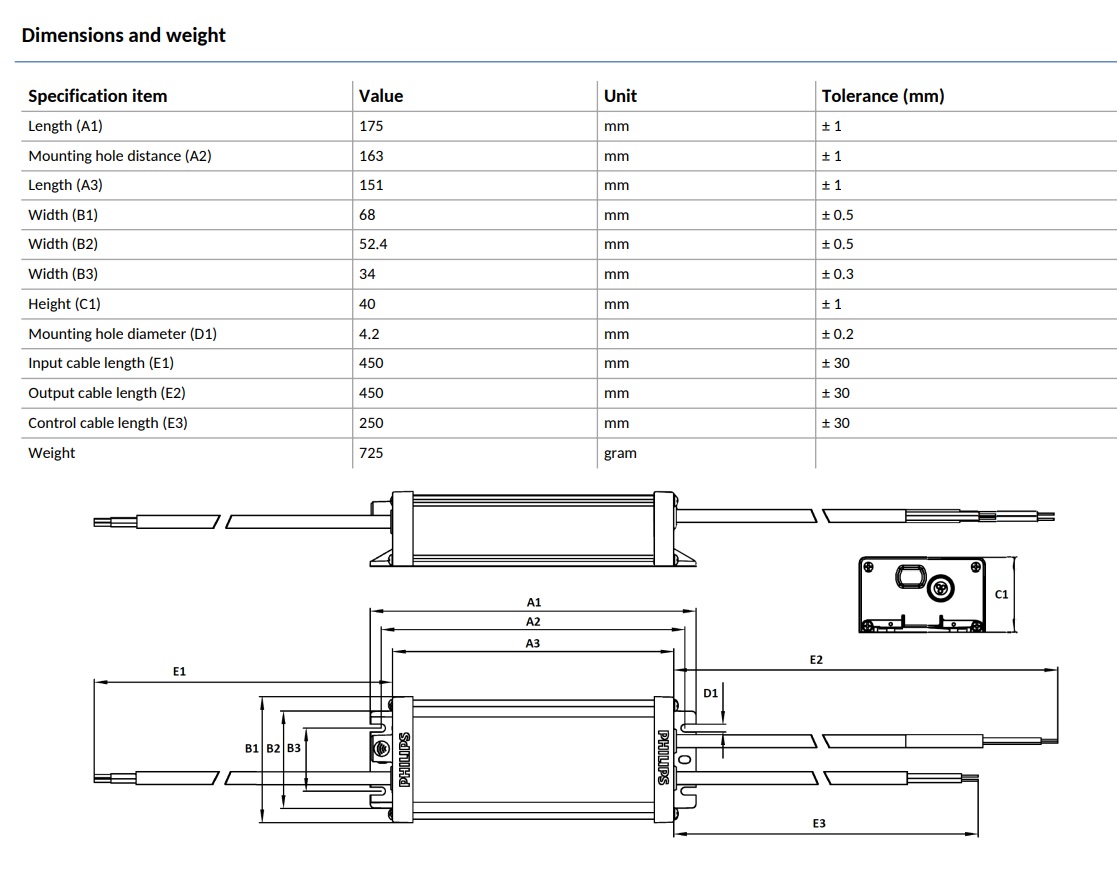

Product parameters
| LED Driver Philips Xitanium | |
| Manufacturer | Philips |
| EAN | 8719514295568 |
| Product number | 929002822980 |
| Length [mm] | 175 mm |
| Height | 40 mm |
| Width | 68 mm |
| IP protection | 67 |
| Dimmable | 1-10V/DALI/Dynadimmer |
| Output voltage | 71-214 V |
| LED driver control current | 0.1 - 1.05A |
| Power cord length | 45cm |
| Output Power | 5-150 W |
