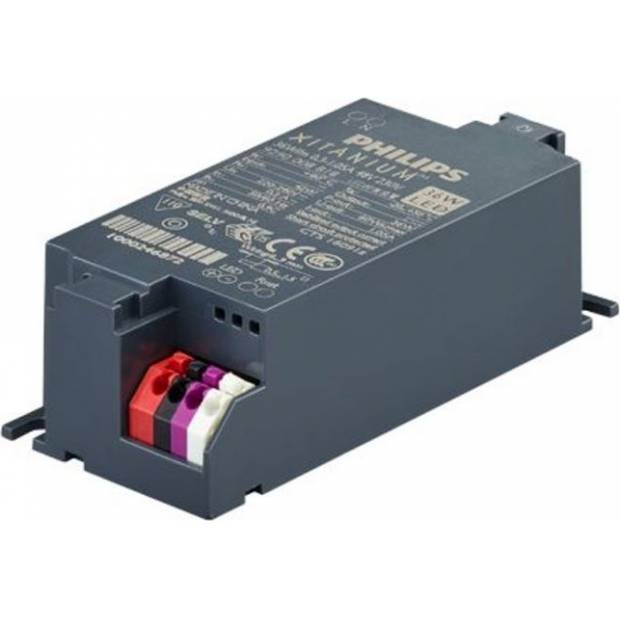

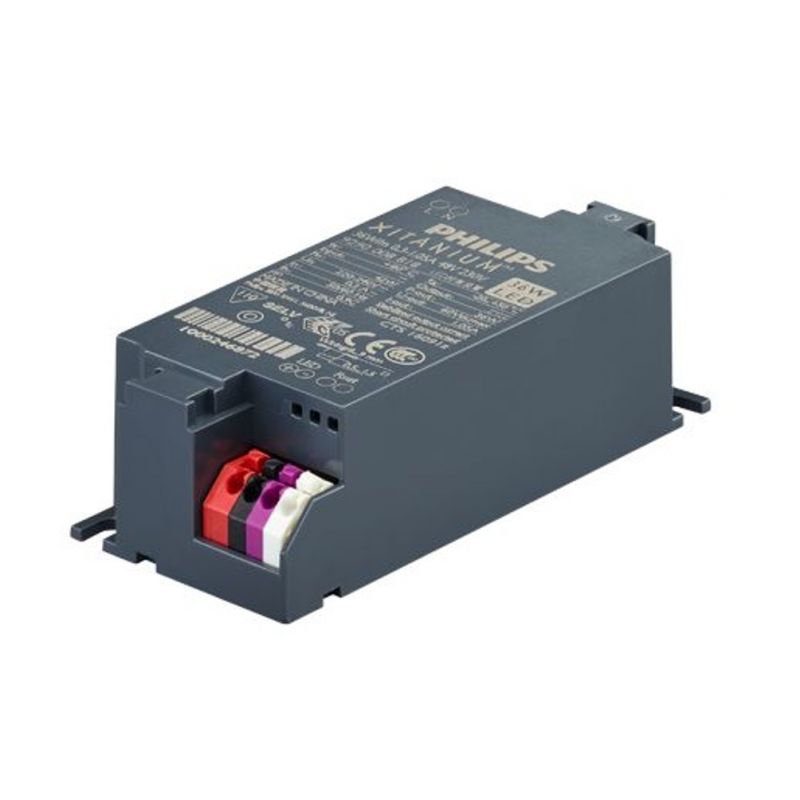

Xitanium 36W/m 0.3-1.05A 54V S TD 230V 9290 014 85206

Dimming LED driver Philips Xitanium 36W – mini and extreme small, Control method - DALI, Touch & Dim (TD) ... Detailed description

Our price with VAT
34,60 €
Out of stock

Detailed product description

Xitanium LED drivers are designed to operate LED solutions for general lighting applications. Reliability is enhanced by features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer stable lumen output and light quality levels that specifiers and architects demand. The adjustable output current also enables operation of various LED PCB solutions from different manufacturers.

Downloadable files

Product parameters

LED Driver Philips Xitanium
Manufacturer Philips
EAN 8718699665647
Product number 929001485206
Power 36 W
Voltage 220 - 240 V
Length [mm] 97,2 mm
Height 30 mm
Width 43 mm
Dimmable Yes
Output voltage 24-54 V
Rated current 0.3-1.05 A
Output Power 11-36 W
