Xitanium 50W/m 0.7-1.5A 54V 230V 9290 014 15306

Name: Xitanium 50W/m 0.7-1.5A 54V 230V 9290 014 15306
Brand: Philips
SKU: 929001415306
Price: 18.81 EUR
Availability: OutOfStock

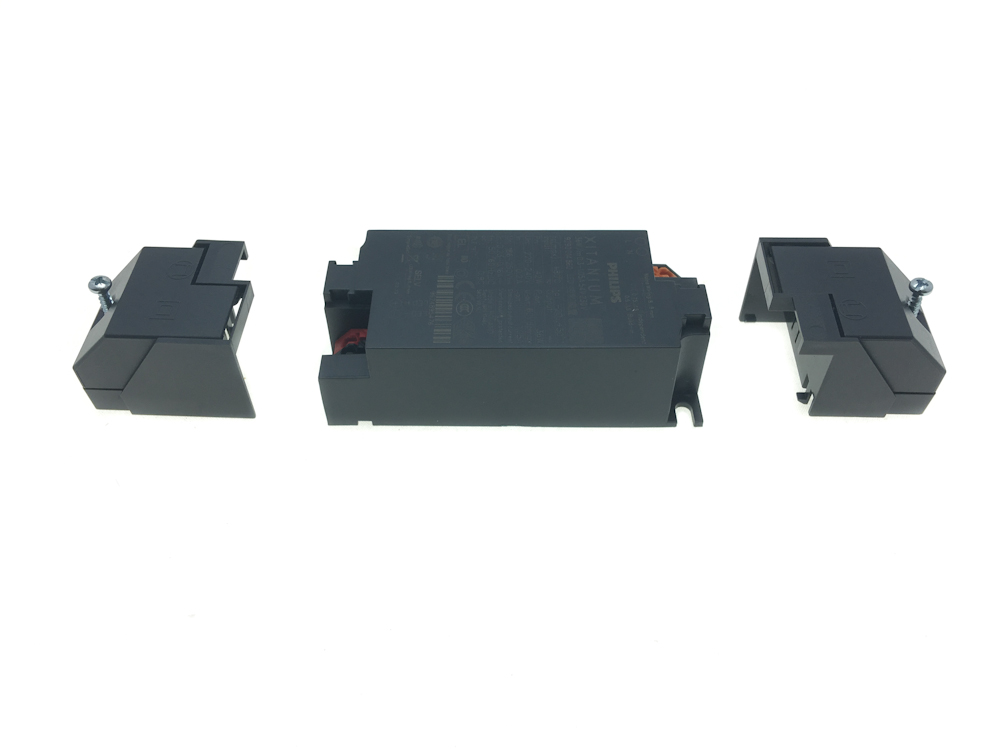

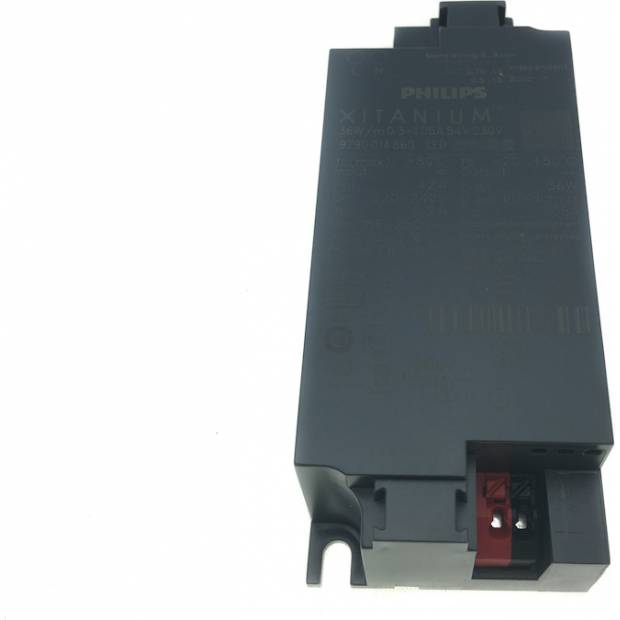

LED driver – mini Xitanium Philips, Spot & dowm-light SELV LED, Output power 17-50W, Output voltage 24-54V ... Detailed description

Our price with VAT

18,81 €

Out of stock

Watch the price and availability

Ask the salesperson

Product description and parameters
Files
Review
We recommend

Detailed product description

Xitanium LED drivers are designed to operate LED solutions for general lighting applications. Reliability is enhanced by features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer stable lumen output and light quality levels that specifiers and architects demand. The adjustable output current also enables operation of various LED PCB solutions from different manufacturers.

Downloadable files

xitanium_50w_m_0.7-1.5a_54v_230v_929001415306.pdf

Product parameters

LED Driver Philips Xitanium
Xitanium LED downlight and spotlight drivers
Manufacturer	Philips
EAN	8718696659090
Product number	929001415306
Power	50 W
Length [mm]	280 mm
Height	30 mm
Width	30 mm
Dimmable	NO
Input voltage	230 V
Output voltage	24 - 54 V
Driver output current	0.7 / 1.5 A
Rated current	0.7-1.5 A
output performance	17 - 50 W
EAN	8718696659090
Output current setting	SimpleSet
