Smart Wi-Fi box for RGB + TW colour light control

Philips WiZ Pro RGBTW Bridge Box, smart and economical LED lighting with wireless Wi-Fi control

7.4.2025 | author: Radek Kaucký

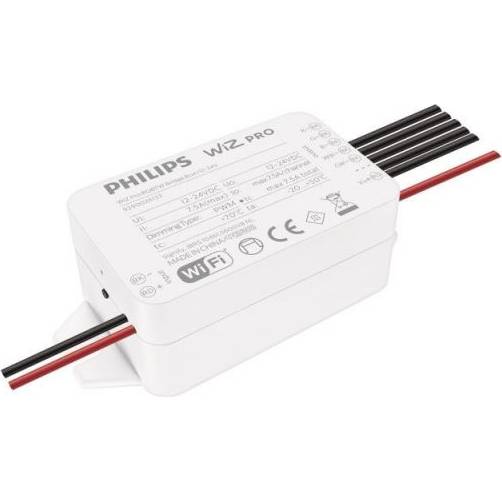

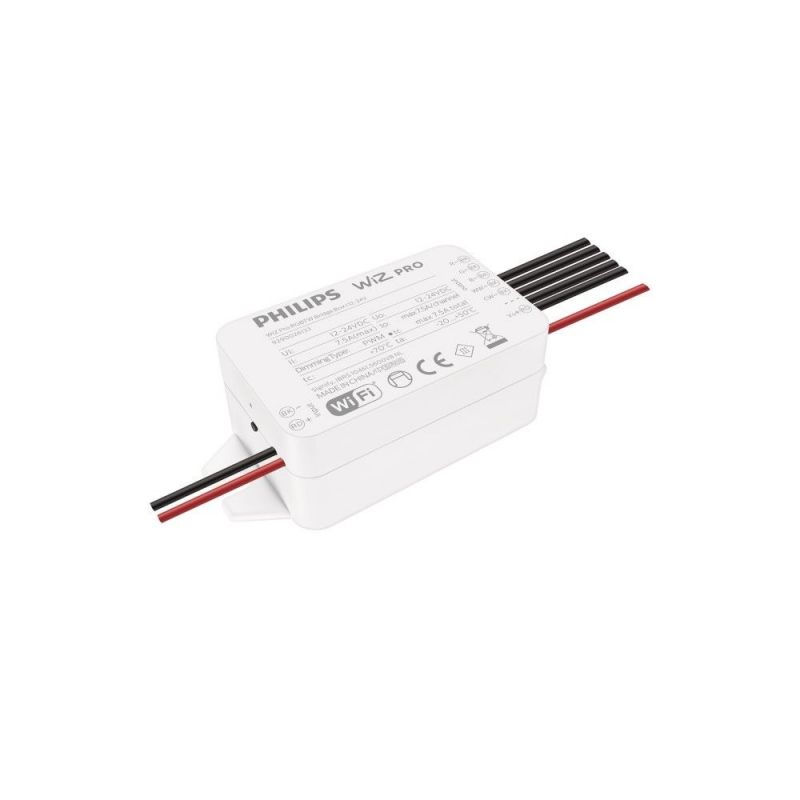

Philips WiZ Pro RGBTW Bridge Box: smart and economical LED lighting with wireless control

I'm vainly thinking how to name this converter in the box to make it understandable to the common user, I came up with these names and let's see how who's looking and how you understand from this article what it's about.

Suggestions for the name of the WiZ Pro RGBTW Bridge Box for the common user :

• Philips WiZ Smart LED Lighting Controller

• Wireless control module for LED lights

• Philips WiZ Pro color light control box

• Control unit for smart LED strips

• Smart Wi-Fi box for light control

• Control unit for coloured and dimmable LED lighting

Looking for a modern solution for intelligent lighting control? The Philips WiZ Pro RGBTW Bridge Box is the key to creating smart wireless LED lighting that allows you to control RGB colours, white temperature across the entire 2700°K - 6500°K spectrum and light intensity (dimming). By linking to a constant voltage transformer and cloud control capability, it delivers this system for maximum convenience, energy savings and ease of installation - the ideal choice for homes and commercial spaces.

Box dimensions : length x width x height = 88 x 41.2 x 28mm

What is the Philips WiZ Pro RGBTW Bridge Box and what is it for?

This smart Philips WiZ Pro control module allows you to easily control coloured LED strips (RGB) as well as adjustable white light colour (warm to cool white - so called. Tunable White) - all conveniently via an app on your mobile phone.

The module connects to a standard 12V or 24V constant voltage LED power supply that powers the LED strips. Once connected, you can easily change the colors, brightness - dimming the light or the light temperature according to your mood or time of day - with just a few clicks in the app.

Important: For proper operation, a strong enough Wi-Fi signal is required where the module is located. A weak signal can cause outages or delayed responses when controlling the lights.

How to connect the module? (3 simple steps)

1. Connect the module to an LED power supply with a 12V or 24V (constant voltage) output.

2. Connect the outputs from the module to your LED strip - it must support colored light (RGB) and Tunable White.

3. Download the WiZ mobile app, connect the module to your home Wi-Fi network and add the device to the app.

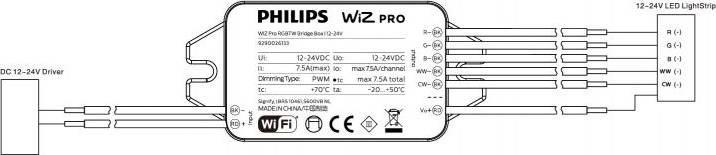

Wiring diagram of the WIZ RGB+TW box

Remote control

You can conveniently control the lights not only from home, but also when you are not connected to your home Wi-Fi. As long as your mobile phone is connected to the internet (e.g. via mobile data), the WiZ app allows you to control your lights remotely from anywhere - for example from work, on holiday or on the way home.

Download the free WIZ Connected app
