DR DALI-P-26/220-240/700 – Dimmable LED driver with DALI and push-button control
Detailed product description
DR DALI-P-26/220-240/700 – Dimmable LED Driver with DALI & Push Button Control
The DR DALI-P-26/220-240/700 is an intelligent LED driver designed for modern lighting systems. It supports DALI 2 dimming as well as manual control via a push button (push-dim), making it a versatile solution for both automated and user-friendly lighting setups.
Key Features:
-
Output Power: up to 26 W
-
Input Voltage: 220–240 V AC
-
Adjustable Output – suitable for various LED modules
-
Dimming Options:
-
Fully DALI 2 compatible
-
Push-dim function for standard wall switch dimming
-
-
Protections: overload, short circuit, overvoltage, overheating
-
Compact size – ideal for integration into luminaires
-
Flicker-free, silent operation
-
High efficiency and low standby power
Advantages:
-
Flexible light control – automated or manual
-
Reliable performance with built-in safety features
-
Suitable for residential, office, retail, and hospitality projects
Product parameters
| Manufacturer | LEDVANCE |
| EAN | 4058075779631 |
| Product number | 4058075779631 |
| Voltage | 9 -52 V |
| Lifetime | 50 000 hours |
| Length [mm] | 98 mm |
| Height | 32 mm |
| Width | 44 mm |
| Dimmable | Dali, button |
| Input voltage | 220 - 240 V |
| Driver output current | 0.15 / 0.2 / 0.25 / 0.3 / 0.35 / 0.40 / 0.45 / 0.5 / 0.55 / 0.6 / 0.65 / 0.7 A |
| Implementation | Without terminal cover |
| output performance | 26,3 W |

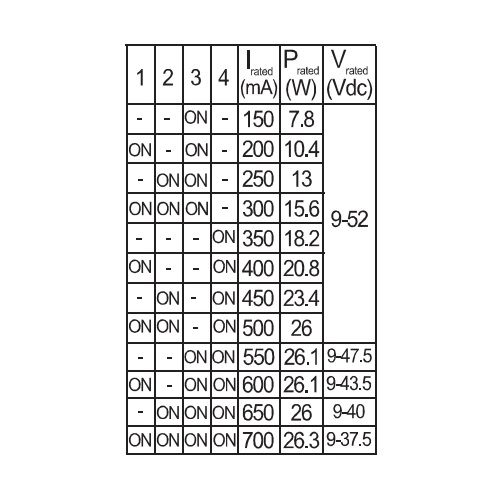

| Output current setting | Dip switch |
