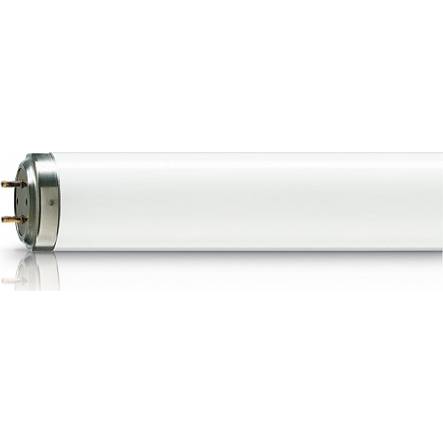

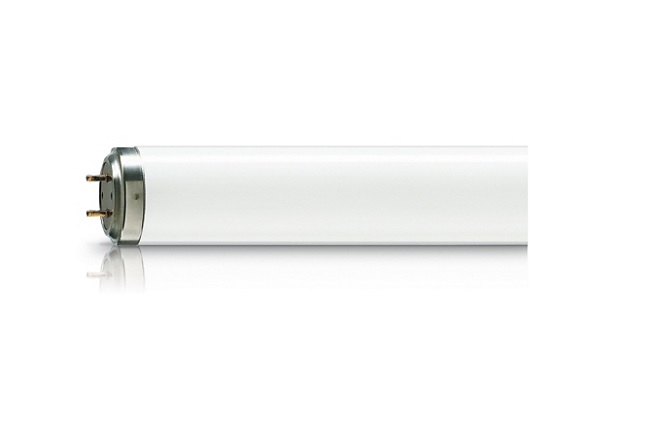

UV-A lamp TL 40W/01 RS G13 for phototherapy and diagnostics

UV-A lamp TL 40W/01 RS G13 is a linear low-pressure fluorescent lamp designed for applications requiring UV-A radiation with a precisely defined spectrum. This type of lamp produces long-wave ultraviolet radiation used in both medical and industrial applications.

The /01 designation represents UV-A spectrum with a peak around 365 nm, which is suitable for photochemical processes, diagnostics and certain types of phototherapy. The lamp is designed to provide stable performance and accurate spectral characteristics.

The tube is made of special UV-transmissive glass, ensuring high efficiency and optimal transmission of UV-A radiation. The G13 base allows installation in standard linear luminaires used in medical or technical equipment.

UV-A lamp TL 40W/01 RS G13 is intended for use in professional systems where precise UV-A output and controlled operation are required.

Technical specifications

• Light source type: UV-A lamp
• Power: 40 W
• Base: G13
• Length: 1200 mm
• Spectrum: UV-A
• Peak wavelength: approx. 365 nm
• Designation: /01 – UV-A
• Technology: low-pressure discharge with phosphor
• Application: phototherapy, diagnostics, inspection
• Operation: with electronic or magnetic ballast

Installation

• installation in medical and technical equipment
• mounting in linear luminaires with G13 base
• operation horizontal
• operation vertical
• integration into inspection and diagnostic systems

Applications

• phototherapy (PUVA treatment)
• dermatological diagnostics
• fluorescent material inspection
• banknote and document verification
• UV inspection systems
• laboratory and technical applications
