Xi FP 165W 0.2-0.7A SNLDAE 230V C170 sXt FULL Prog LED Xtreme drivers Philips

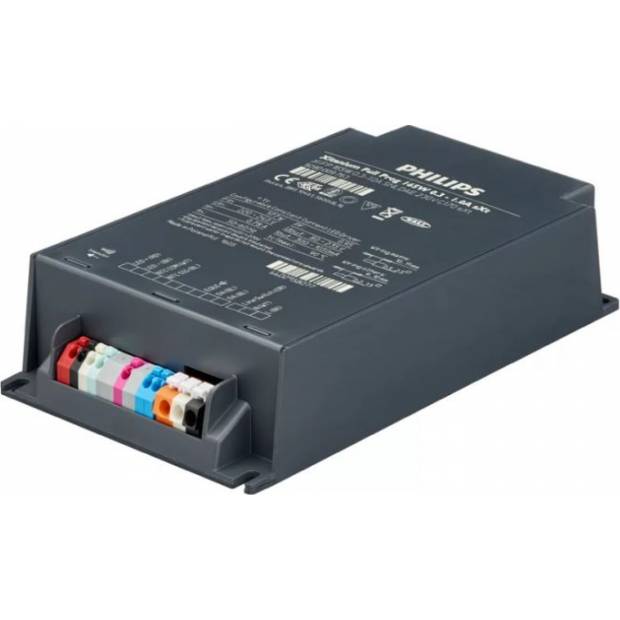

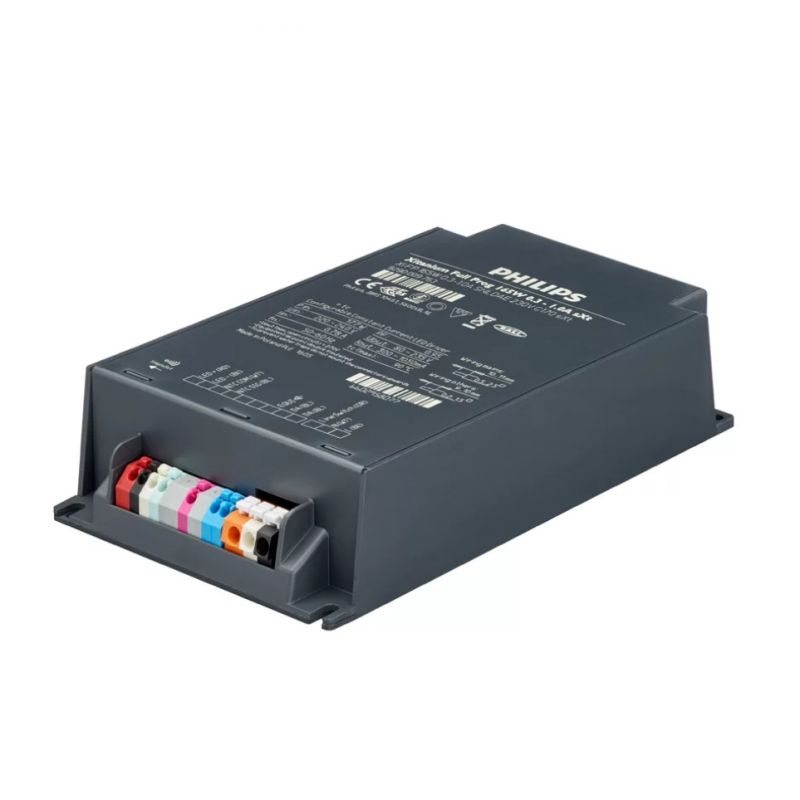

LED driver 165W Xi FP 165W 0.2–0.7A SNLDAE 230V C170 sXt is a fully programmable constant-current power supply for LED luminaires. It is designed for professional outdoor, industrial and technological applications where high durability, long lifetime, stable operation and precise output current adjustment are required.

The programmable LED driver operates with an output power of 7–165 W and an output current range of 200–700 mA. The output current is adjustable via the Adjustable Output Current function. The factory-set output current is 700 mA. The setting is programmable via SimpleSet, and the product page also states DALI output current setting. DIP switches are not listed for this version, therefore there are no DIP combinations for manual current switching.

The DALI LED driver supports multiple control and dimming methods, including DALI, AmpDim, Coded Mains, integrated Dynadimmer, LineSwitch single-step and LineSwitch 3-step. Thanks to CLO, ALO, AST, DTL, MTP, diagnostics, energy measurement via DALI Part 252 and diagnostics via DALI Part 253, the LED driver 165W is suitable for modern controlled LED luminaires.

In terms of construction, it is a built-in LED driver with IP20 protection, double input-output insulation and the possibility of use in Class I and Class II luminaires. Xtreme technology increases resistance to humidity, vibration, thermal stress and overvoltage. The driver is intended for integration into an LED luminaire and requires connection to a suitable LED module within the corresponding operating range.

Technical data

• Type: programmable LED driver

• Output power: 7–165 W

• Output regulation: constant current

• Programmable current range: 200–700 mA

• Total output current: 0.05–0.7 A

• Minimum programmable current: 200 mA

• Factory-set current: 700 mA

• Minimum dimming current: 53 mA

• Output current tolerance: ±5 %

• Output voltage: 100–300 V DC

• Maximum output voltage at no-load operation: 340 V

• Input voltage: 202–254 V AC power range

• Safety input AC range: 80–264 V AC

• Rated input voltage: 230 V AC

• Frequency: 47–63 Hz power range

• Input current: 0.76 A

• Maximum input current: 0.9 A

• Power consumption: 177 W

• Power factor: 0.99

• THD: 6 %

• Efficiency: 93 %

• Standby power consumption: 0.45 W

• Control: DALI, AmpDim, Coded Mains, Dynadimmer, LineSwitch single-step, LineSwitch 3-step

• Dimming range: 10–100 %

• Current setting: programmable AOC via SimpleSet, DALI

• CLO: yes

• ALO: yes

• AST: yes, default 1 s

• DTL: yes, default enabled

• MTP: yes, default disabled

• Dynadimmer: yes, default disabled

• LineSwitch single-step: yes, default enabled

• LineSwitch 3-step: yes, default disabled

• AmpDim: yes, default disabled

• End Of Life indication: yes, default disabled

• Coded Mains: yes, default disabled

• No-load protection: yes

• Short-circuit protection: yes

• Overload protection: yes

• Overtemperature protection: yes

• Surge protection, mains differential mode: 6 kV

• Surge protection, mains common mode: 10 kV

• Surge protection, DALI differential mode: 1 kV

• Surge protection, DALI common mode: 6 kV and 8 kV depending on wiring

• Protection rating: IP20

• Application: Outdoor

• Length: 170 mm

• Width: 100 mm

• Height: 40 mm

• Mounting hole spacing: 160 mm

• Mounting hole diameter: 4.2 mm

• Weight: 890 g

• Input wire cross-section: 0.5–1.5 mm²

• Output wire cross-section: 0.5–1.5 mm²

• Control wire cross-section: 0.5–1.5 mm²

• Maximum cable length between driver and LED module: 2.5 m

• Ambient operating temperature: -40 to +55 °C

• Tcase max: 90 °C

• Tcase life: 80 °C

• Storage temperature: -40 to +85 °C

• Lifetime: 100,000 h

• Operating relative humidity: 10–90 %, non-condensing

• Pieces per package: 9 pcs

Mounting method

• Surface-mounted installation: not specified as a separate mounting method

• Mounting limitation: the driver has IP20 protection and is intended as a built-in component for integration into a luminaire or a suitable enclosed space

Use – applications

• Outdoor LED luminaires

• Road and street lighting

• Area outdoor lighting

• Tunnel lighting

• Industrial LED lighting

• LED luminaires for premises and outdoor areas

• High-power LED luminaires with DALI control

• Class I and Class II luminaires

• Controlled lighting systems requiring dimming

• LED systems requiring long lifetime and high surge resistance
