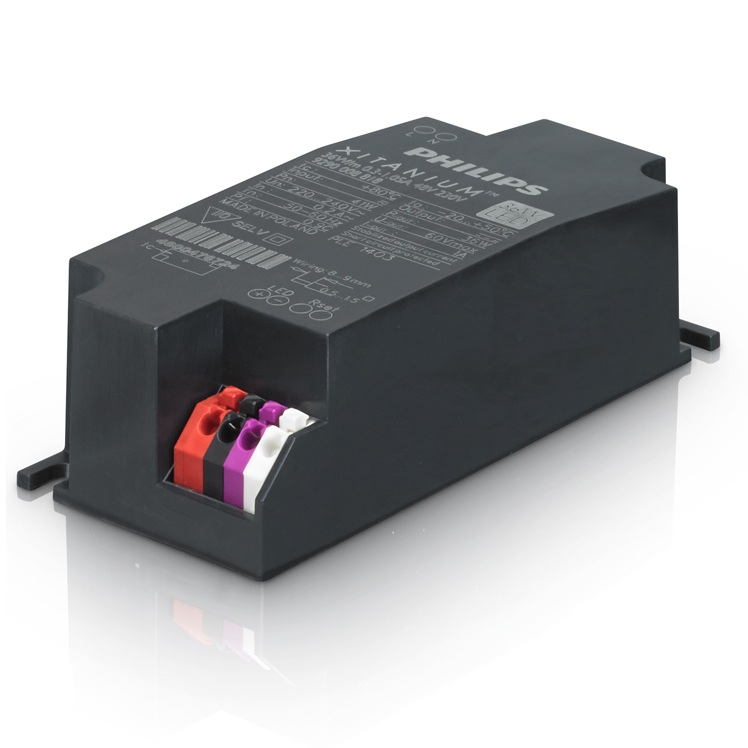

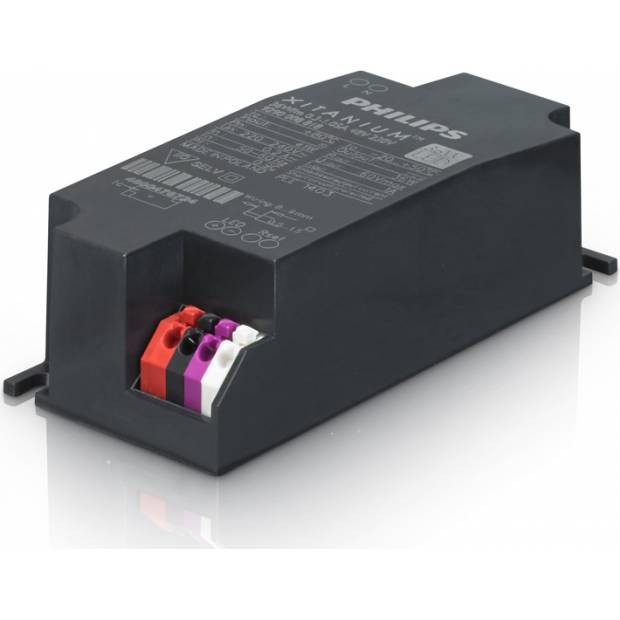

Xitanium 50W/m 0.7-1.5A 48V 230V downlight and spotlight drivers

9290 009 34606 Xitanium LED downlight and spotlight mini drivers, max.50W, Output Current 0.7-1.5A, Output Current Set Options LEDSet ... Detailed description

Our price with VAT

19,10 EUR

In Stock more than 50 pcs

pcs

Watch the price and availability

Ask the salesperson

Product description and parameters
Files
Review
We recommend

Detailed product description

Transformer for LED panels or built-in LED luminaire with maximum power up to 50W, output adjustable control current from 0.7 to max. 1.5A with safe voltage max.48V

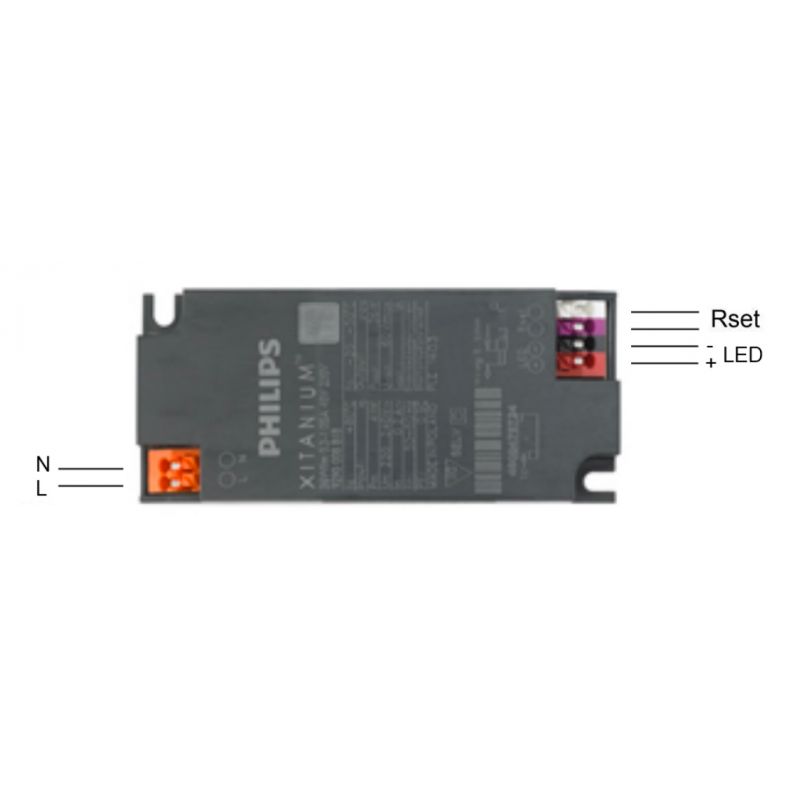

The control current of the driver is adjusted by means of a resistor which is inserted into the terminals of the ballast marked Rset.

The electrical resistance or resistor is the real part of the complex impedance of an electrical circuit, preventing the passage of electric current. The value of the electrical resistance in this case depends on the setting of the output product that the driver uses to power the LED module in the luminaire.
According to the size of the respective resistance,
Slovník
Pro tuto jazykovou kombinaci není slovník k dispozici.we therefore set the value of the current we need from this ballast or driver or also the LED driver at the output to which we connect the luminaire.

Downloadable files

xitanium-50w_m-0.7-1.5a-48v-230v-9290-009-34606.pdf

Product parameters

LED Driver Philips Xitanium
Manufacturer	Philips
EAN	8718696437186
Product number	929000934606
Height	30 mm
Width	43,2 mm
Dimmable	No
LED driver control current	0.7-1.5A mA
Length	97 mm
Output Power	17 - 50 W
Output settings	Rset2
