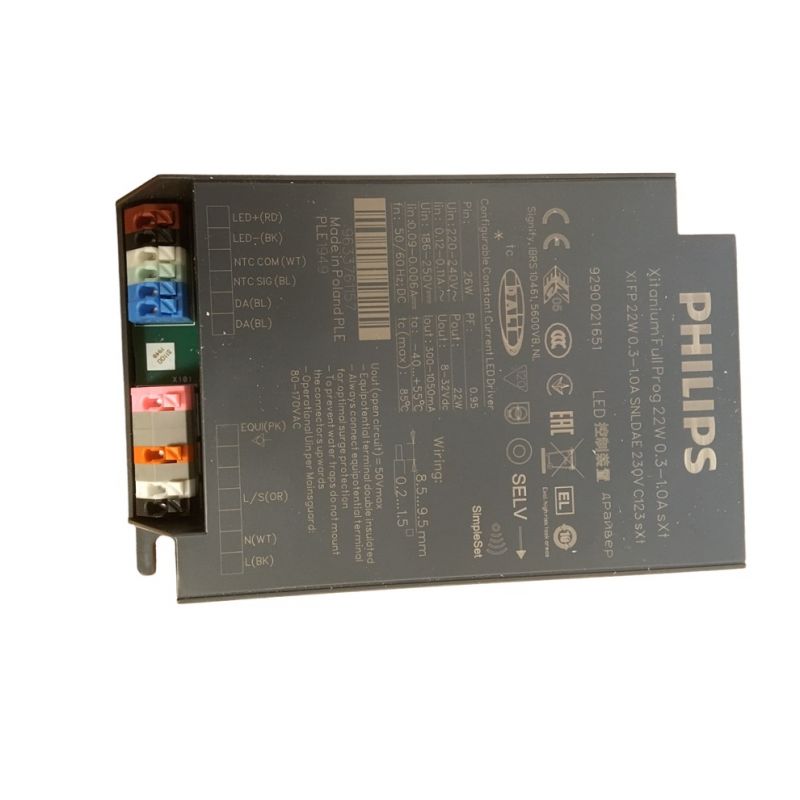

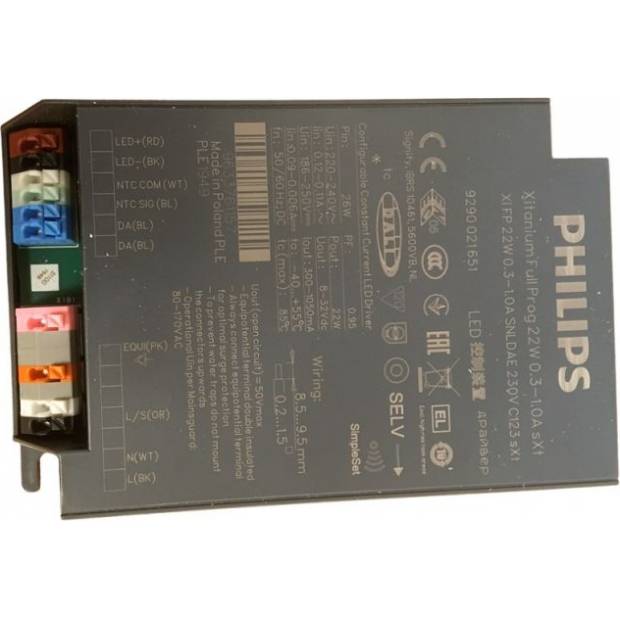

Xi FP 22W 0.3-1.0A SNLDAE 230V C123 sXt
Detailed product description
Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime. In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both
OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance.
Application
• Road and street lighting
• Area lighting
• Tunnel lighting
• Industrial lighting
Downloadable files
Product parameters
| LED Driver Philips Xitanium | |
| Manufacturer | Philips |
| EAN | 8718699749316 |
| Product number | 929002165106 |
| Length [mm] | 123 mm |
| Height | 31 mm |
| Width | 79 mm |
| Dimmable | DALI, Dynadimmer |
| Output voltage | 8 - 32 V |
| Pieces in box | 20pcs |
| output current | 300 - 1050mA |
| Output Power | 0.6 - 22 W |
