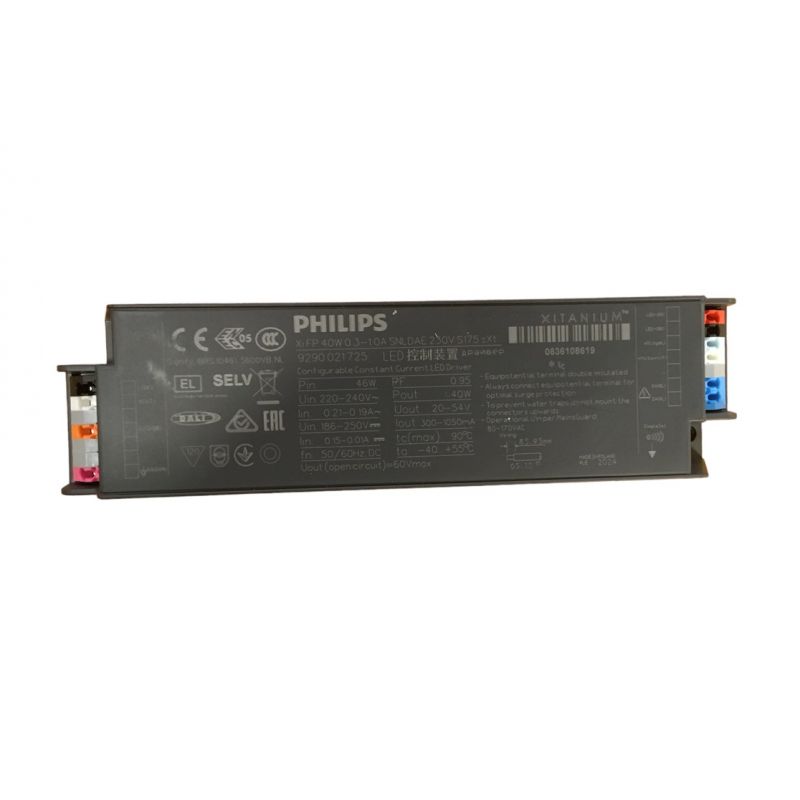

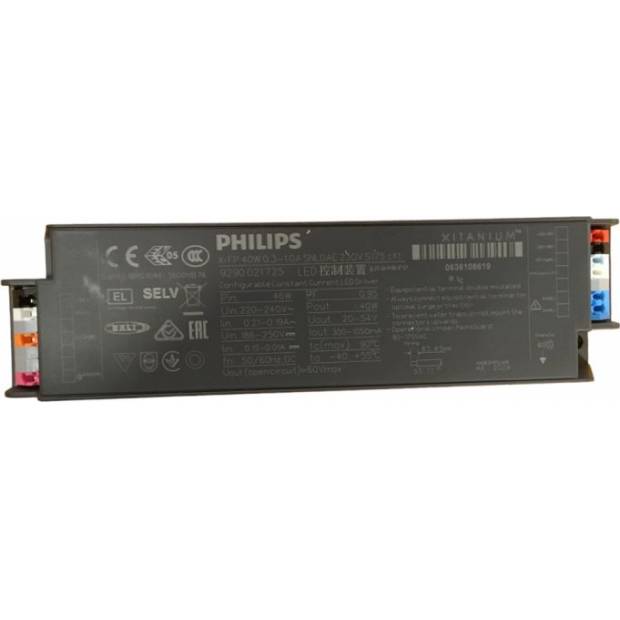

Xi FP 40W 0.3-1.05A SNLDAE 230V S175 sXt 9290 021 72506

Philips Xitanium FULL Programmable 40W, Programmable, SimpleSet ... Detailed description

Our price with VAT
49,90 €
Arriving Soon more than 10 pcs

Detailed product description

Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime.

Features

• High surge protection (CM/DM)

• Long lifetime and robust protection against moisture, vibration and temperature
• Configurable operating windows (AOC)
• Multiple control interfaces: DALI, AmpDim, 1-step and 3-step LineSwitch
• Autonomous dimming via integrated DynaDimmer
• Adjustable thermal protection for driver (DTL) and LED module (MTP)
• Constant Light Output (CLO)
• Adjustable Start-up Time (AST)
• Adjustable Light Output (ALO) • End-Of-Life indicator (EOL)
• Communication through mains via coded commands • Compliant per DALI Part 251/252/253 (select models)

Application

• Road and street lighting
• Area lighting • Tunnel lighting
• Industrial lighting



Downloadable files

Product parameters

LED Driver Philips Xitanium
Manufacturer Philips
EAN 8718699765392
Product number 929002172506
Height 34 mm
Width 46 mm
Dimmable Dynadimmer, Dali, AmpDim
Output voltage 25-77 V
Pieces in box 20
LED driver control current 0.2 - 0.7A mA
Output Power 1.4 - 40 W
Length [mm] 175
