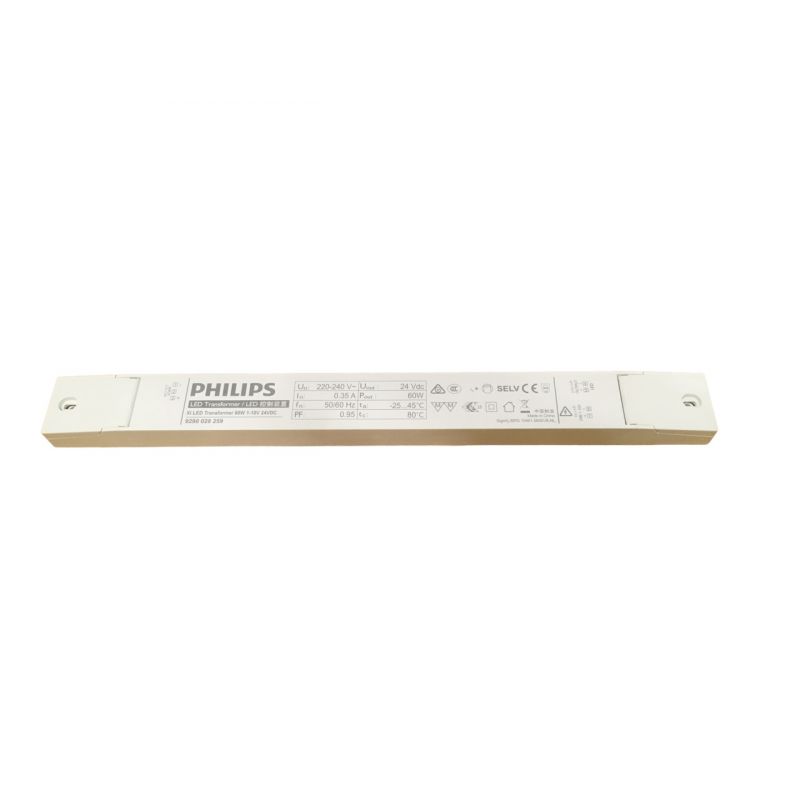

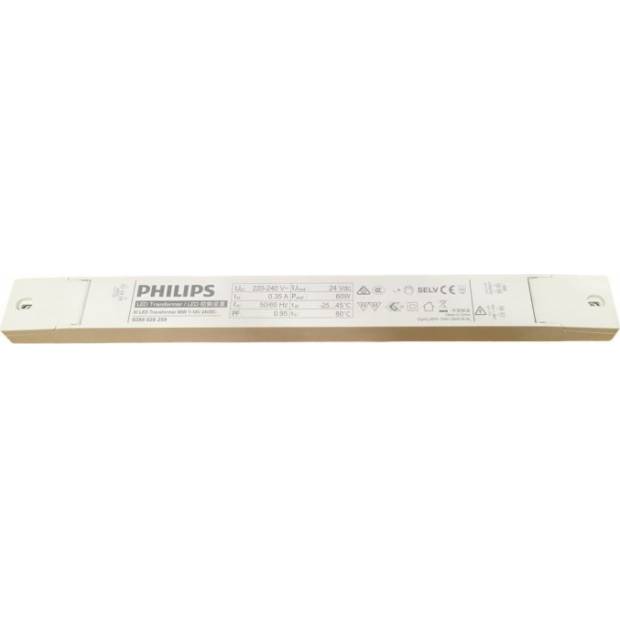

Xi LED Transformer 60W 1-10V 24VDC 9290 028 25980
Detailed product description
Philips fully-electronic constant voltage 1-10V LED Transformers are designed to operate dimmable 24VDC LED solutions used for linear accent lighting in general applications such as hotel rooms, restaurants and retail displays. These state-of-the-art drivers offer controllability via the 1-10V protocol. They are specifically designed to ensure the highest performance with maximum robustness combined with a long lifetime.
Features
• 1-10V control interface incl. dim to OFF• Independent use for Insulation Class Iand Class II applications• Global approbations and certifications• Stable output voltage• Wide ambient temperature range• Protection against overpower andovervoltage• Output short-circuit shutdown featurewith automatic restart
Dimming range 1-100%
Based on PWM, f = 1.38kHz, incl. Dim-to-off. Note: minimum output loading at full light output must be at least 30W to ensure stable dimming down to 1%. Please refer to design-in guide for more controllability details.
Product parameters
| Manufacturer | Philips |
| Product number | 929002825980 |
| Power | 60 W |
| Voltage | 24 V |
| Length [mm] | 300 mm |
| Height | 16 mm |
| Width | 30 mm |
| Power | 60 W |
| IP protection | 20 |
| Dimmable | 1-10V |
