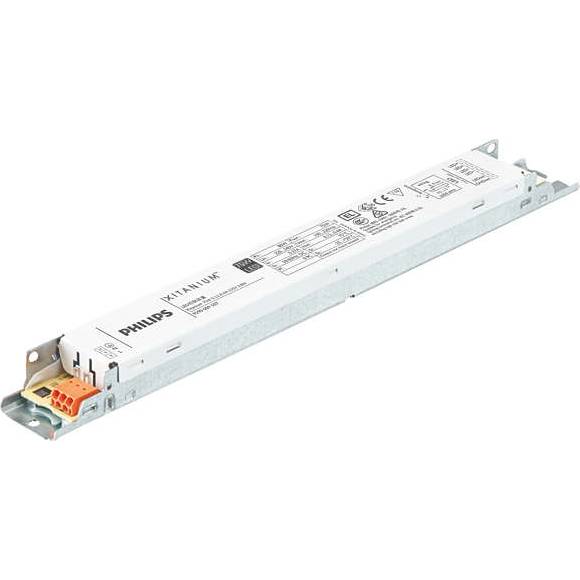

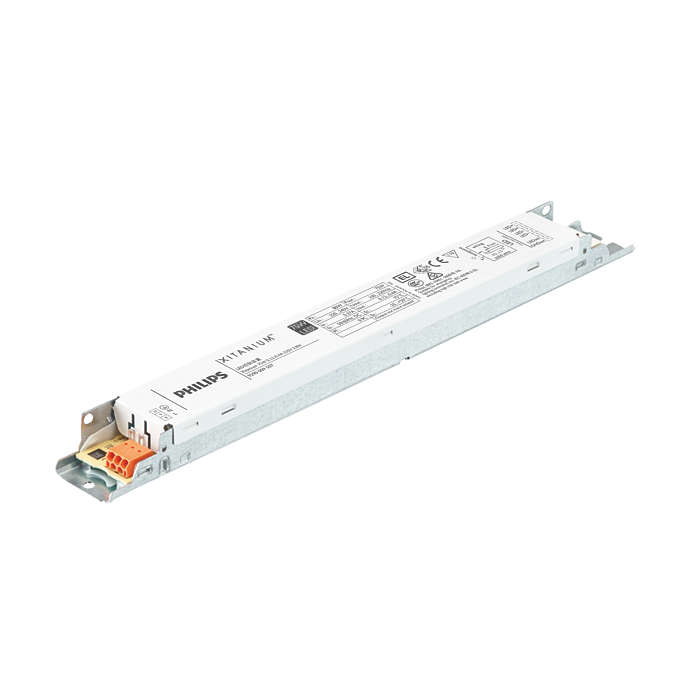

Xitanium 75W 0.7-2.0A 54V 230V 929001694206

Philips Xitanium Linear Isolated LV LED drivers Adjustable Current, old code 929000958806 new GPC code 929001694206 ... Detailed description

Our price with VAT
20,10 €
In Stock more than 50 pcs
pcs

Detailed product description

Xitanium LED drivers are designed to operate LED solutions for general lighting applications such as linear lighting, as well as downlighting and spot/accent lighting. High reliability underpinned by 5-year warranty, enhanced by specific features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating generation and complexity challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Applicationoriented operating windows offer the flexibility required to provide the stable lumen output and light quality levels that lighting specifiers and architects demand. And the adjustable output current also enables operation of various LED PCB solutions from different manufacturers.

Downloadable files

Product parameters

LED Driver Philips Xitanium
Manufacturer Philips
EAN 8718699756192
Product number 929001694206
GPC code 929001694206
EOC code 871869646889000
Application Linear indoor
Pieces in box 24pcs

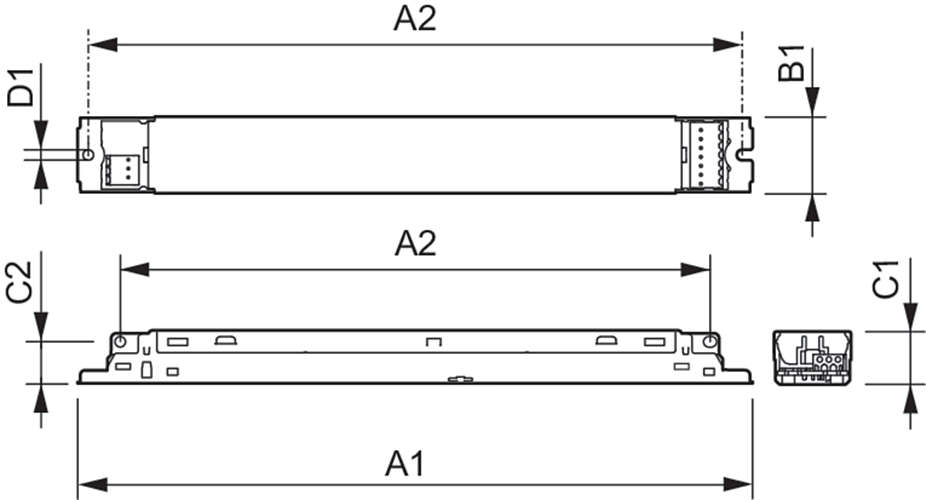

Length [mm] 360 mm
Height 21 mm
Width 30 mm
Weight 240 g
Dimmable No
Input voltage 230 V
Output current [mA] 700 - 2000
Length - 360 m
Output Power 21 - 75 W

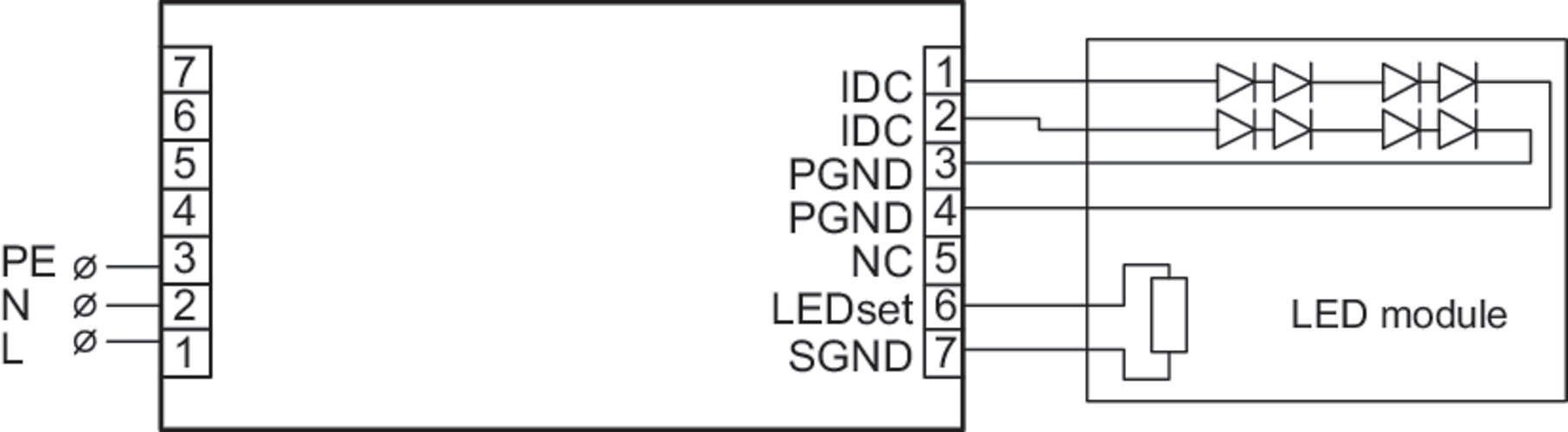

Output current setting LEDset
