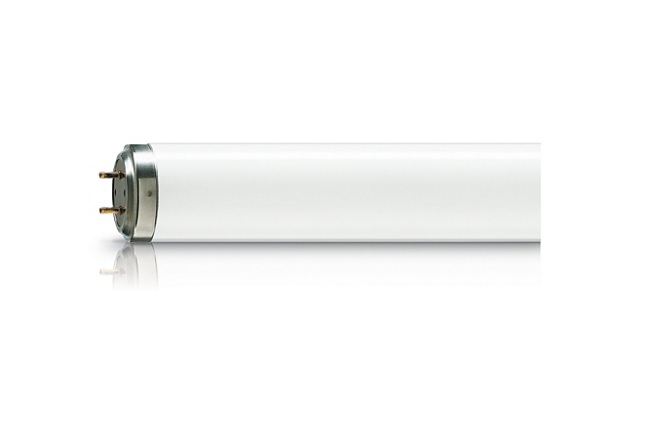

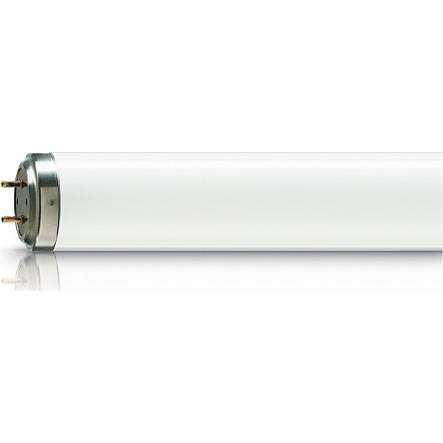

TL 80W/10-R Flexo Print

928005901029 TL 80W/10-R G13, Actinic lamps for Reprography, Flexoprint reprograhic equipment, Diazo copying machines ... Detailed description


Detailed product description

Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands – between 350 and 400 nm – and have peak intensity at 370 nm (except for the /03 version). This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the ‘R’ lamps in the family have an internal 200-degree reflector to further optimize the lamp’s overall efficiency.

Warnings and Safety
A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

Downloadable files

Electronic ballast

Product parameters

EAN 8711500612625
Product number 928005901029
Source type Ultra Violet A
Type TL 80W/10-R SLV
GPC code 928005901029
EOC code 871150061262540
Application Reprography
Pieces in box 25
Cap-Base G13
Power 80 W
Voltage 110 V
Current 83 A
Lifetime 1 000 hours
Wavelength 350-400 nm
Color Ultraviolet
Length [mm] 1,514 m
Diameter 40,5 mm
Weight 331 g
Shape T38
